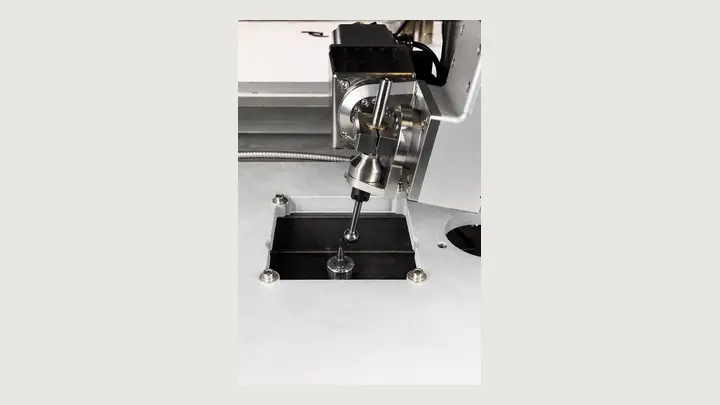

Ultra-precision option
Enhanced calibration for up to ±1.5 µm positioning accuracy and repeatability in X-Y for 3X, with extended geometric calibration for compatible 5X, type ABX systems.
Reference
6009100 / 6009102 / 6009104
Finecut options
Configure around
the application.
Use the filters to explore motion, tooling, process support and production infrastructure. Finepart validates every final package against material, geometry, throughput and site conditions.
Showing all 70 options
FAW200 cutting system
Optimized for the finest features available in micro abrasive waterjet cutting.
Reference
6001000
FAW300 cutting system
Balanced for world-class fine tolerances and broad precision-cutting performance.
Reference
6001050
FAW400 cutting system
More jet power and larger abrasive for higher material-removal rates and cutting speed.
Reference
6001100
FAW500 cutting system
The largest standard nozzle size for increased power, abrasive flow and productivity.
Reference
6001150

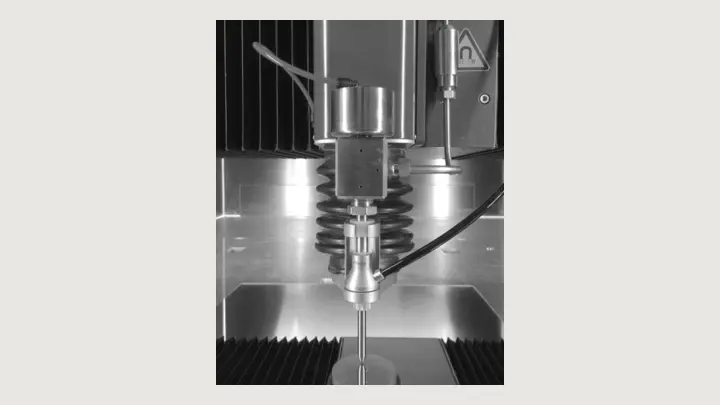

FAW500XL cutting system
Extended bore length for improved reach and higher length-to-diameter applications.
Reference
6001155

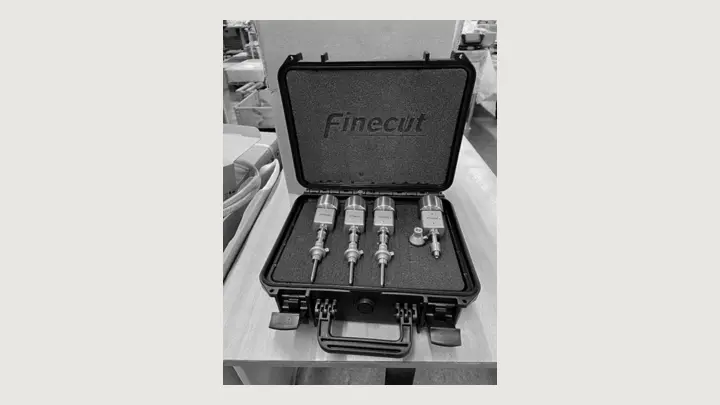

PRO range cutting-system kit
FAW200, FAW300, FAW400 and FAW500 assemblies kept ready for rapid application changeover.
Reference
6001250

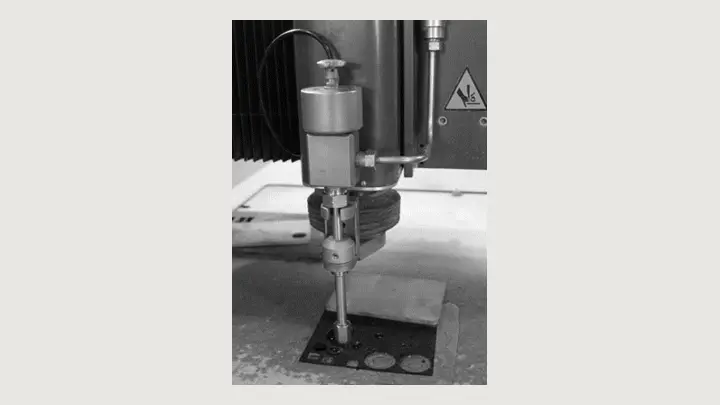

Pure-water cutting system
Abrasive-free waterjet cutting for suitable soft materials such as polymers, rubber and food products.
Reference
6001200

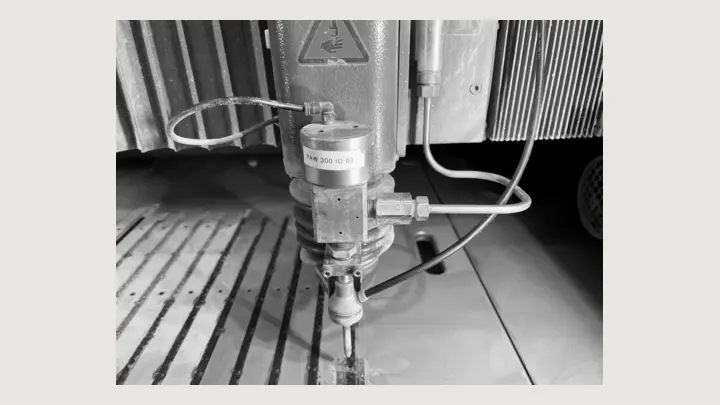

Inline filter system
Protects the water orifice from particles in the incoming high-pressure water.
Reference
6001260

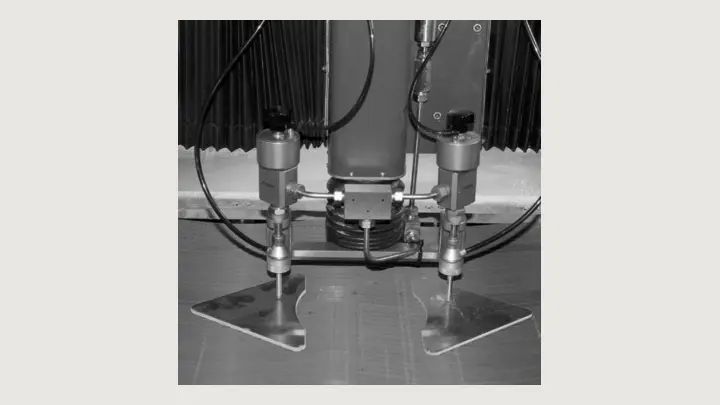

Dual cutting head
Runs two cutting systems in parallel for suitable repeated geometries and productivity cases.
Reference
6001300

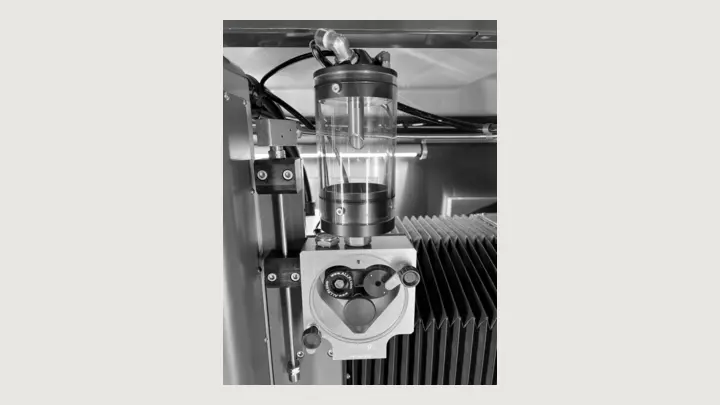

Complete abrasive feeder
Supports practical handling of different abrasive media and application setups.
Reference
6002400
Dual feed lines for quick-shift abrasive
Selects between two independent abrasive sources without emptying the active feed arrangement.
Reference
6002410

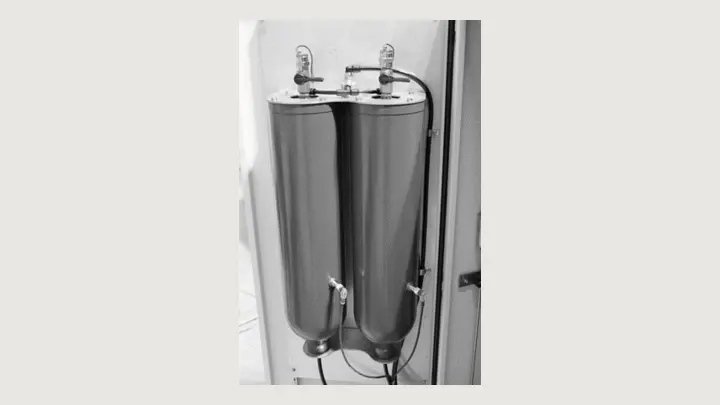

Complementing FAW pressure vessel
Adds a second pressure vessel for alternative abrasive and faster material changeover.
Reference
6002200

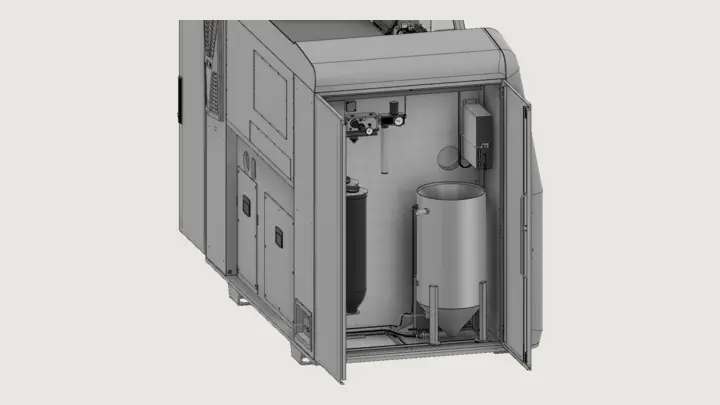

Internal pressure vessel XL
75 kg internal abrasive capacity for longer operating cycles with larger cutting systems.
Reference
6002220

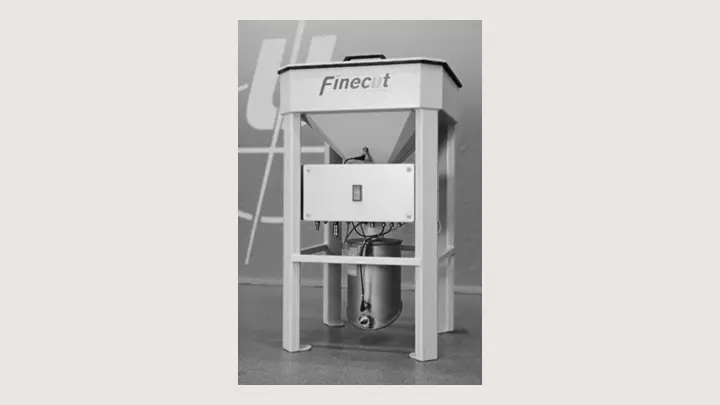

External bulk feeder
100 kg feeder for coarser abrasive media and high-consumption production.
Reference
6002300

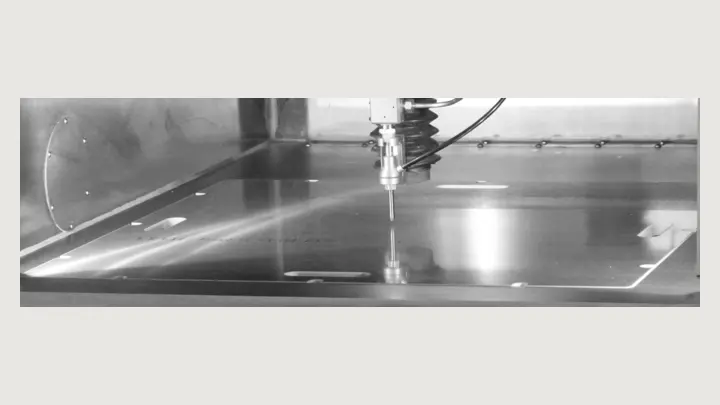

Standard fixture plate
A 740 × 740 mm anodized aluminium pallet; reference 6001800 adds stainless-steel precision guide-pin hole inserts for repeated fixture relocation.
Reference
6001700 / 6001800

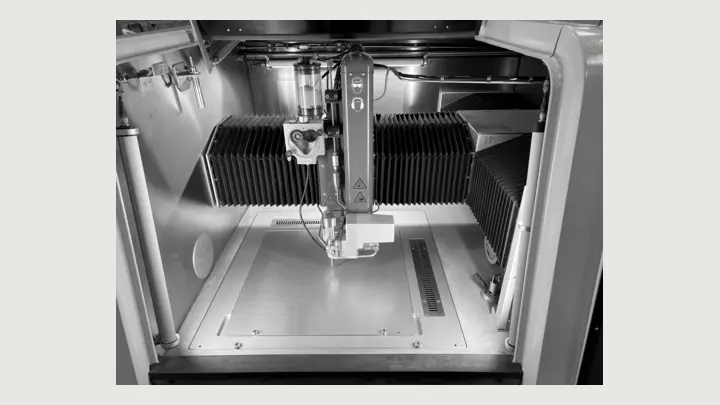

Replaceable insert plate
Simplifies lightweight fixture handling and reduces replacement cost in frequently changed setups.
Reference
6001750

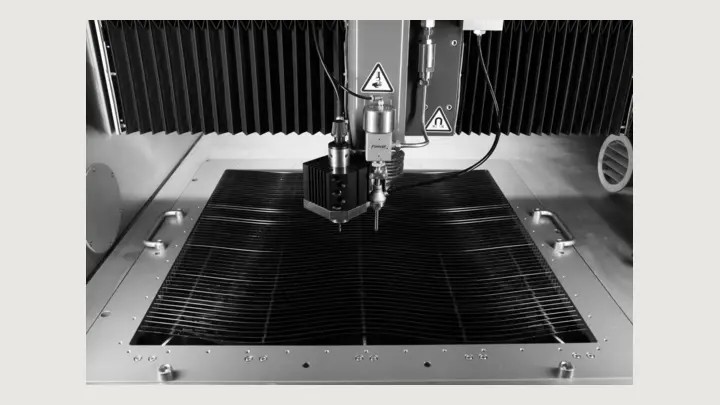

Wave grid
A versatile non-destructive support surface for suitable sheets and parts.
Reference
6001900

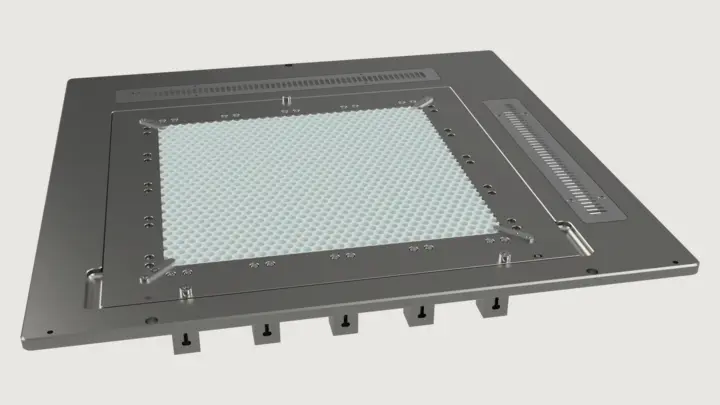

Rhino grid
A robust multi-purpose work support for suitable cutting and fixture arrangements.
Reference
6001950

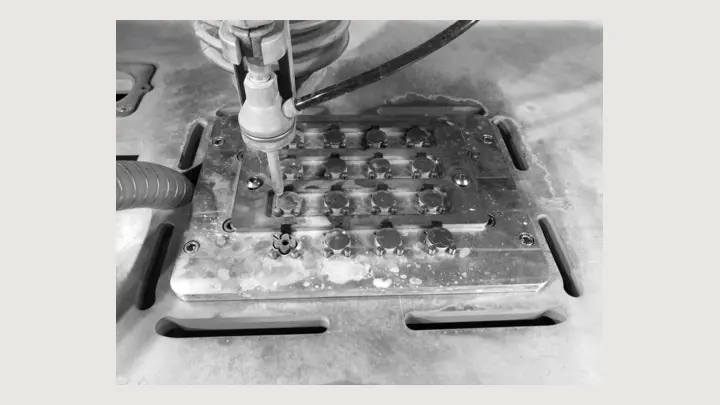

Vacuum fixture system
Holds suitable parts from the centre, keeping the outer contour clear for complete cuts.
Reference
Application-specific

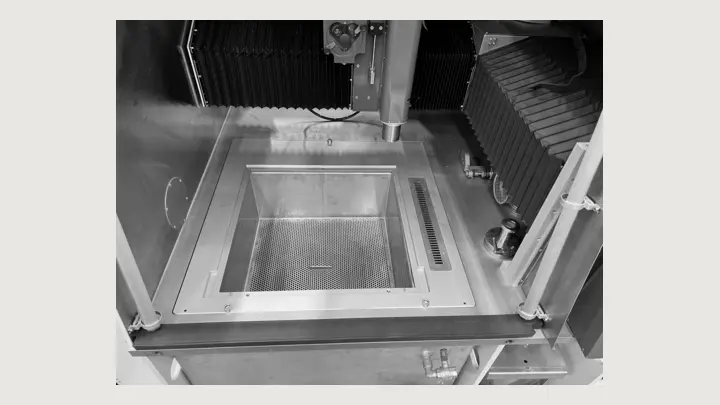

Dry catcher
Dry collection concept for suitable singulation work in optics, electronics and similar applications.
Reference
6005100

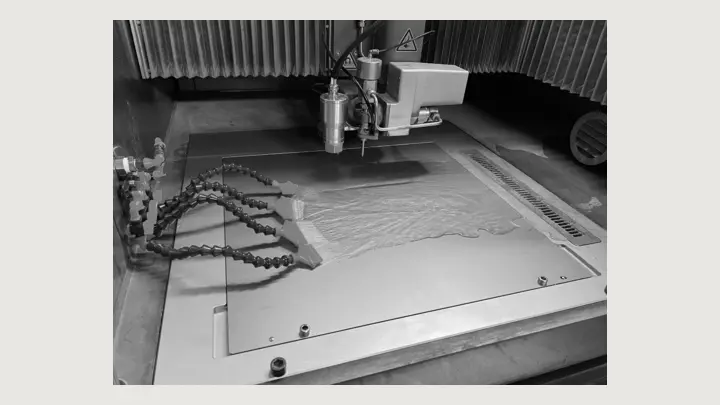

Surfactant spray
Helps keep sensitive parts free from water stains in suitable singulation processes.
Reference
6005160

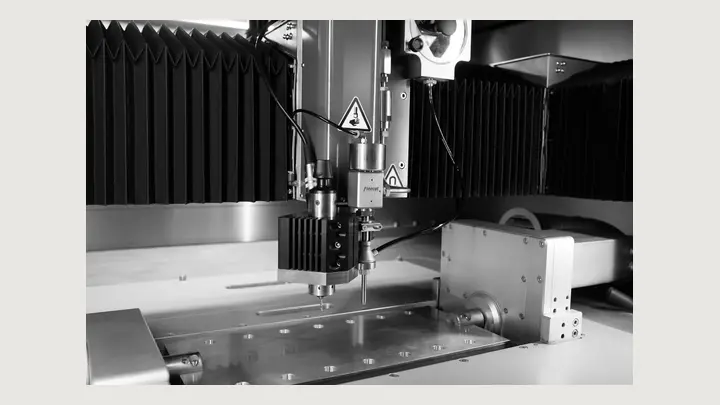

4X, type A rotary axis / tilt table
Detachable 360° A-axis for synchronous rotation, tube cutting and rotational geometries.
Reference
6003000

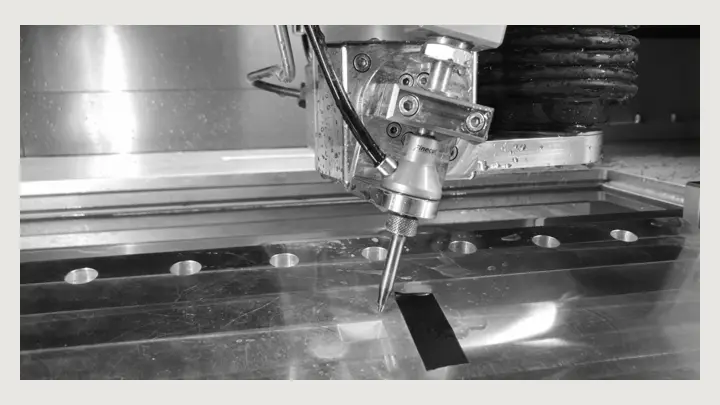

4X, type B
Tiltable B-axis to ±45° for uni-directional chamfers and angled edges.
Reference
6003800

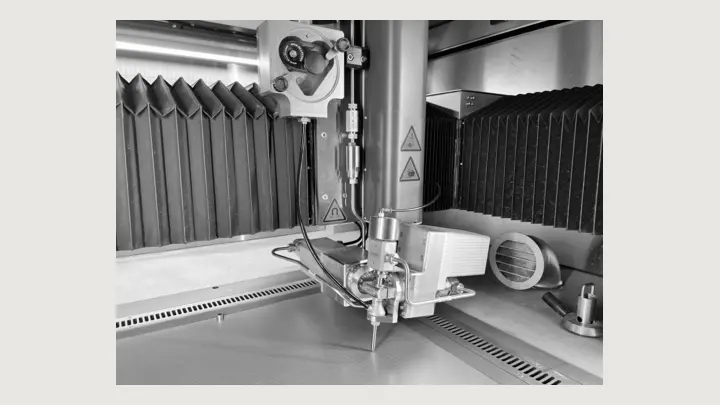

5X, type ABX
Synchronous A/B head motion with TCP functionality and cutting angles up to ±15°.
Reference
6003100

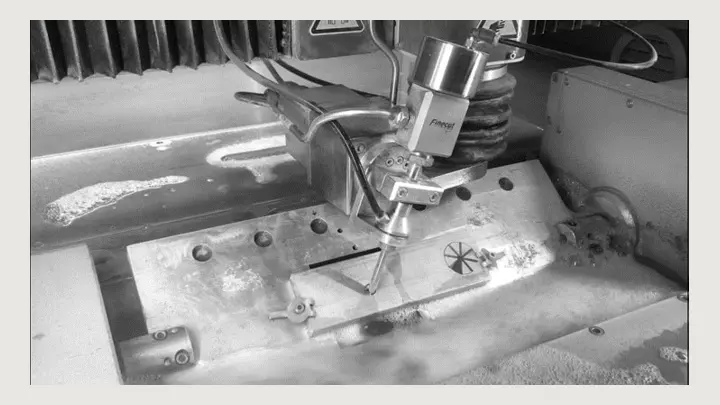

5X, type B4X
Tilting B-axis and rotating A-axis for complex 3D geometry and multi-side access.
Reference
6003700

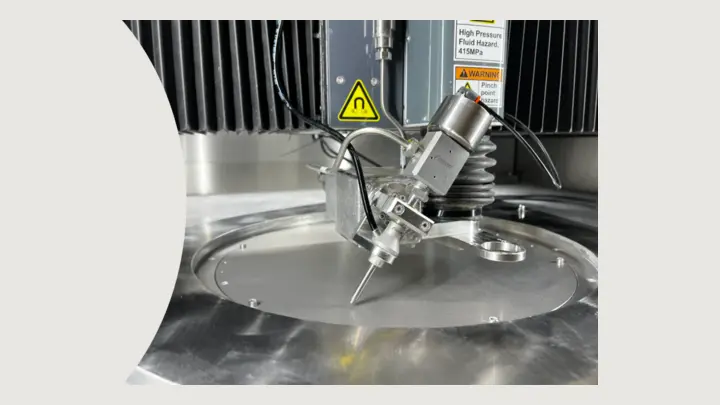

5X, type CBX / C-axis rotary table
Synchronized rotary table used with the B-axis for angled contours and special taper features.
Reference
6003870

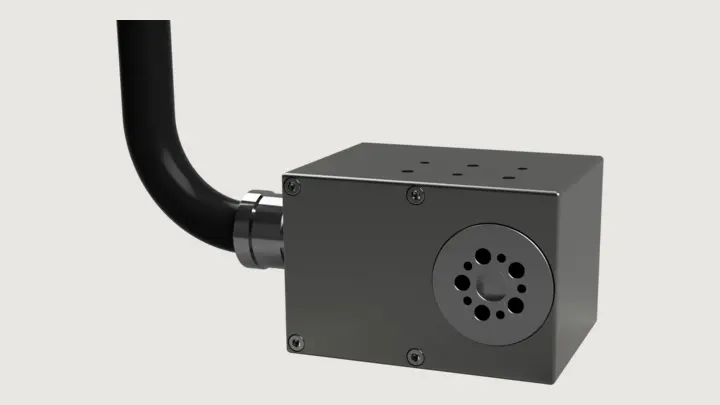

Multi-Purpose Axis - MPX
Compact sealed precision axis for indexing, rotation, tilt and application-specific live fixtures.
Reference
6003850

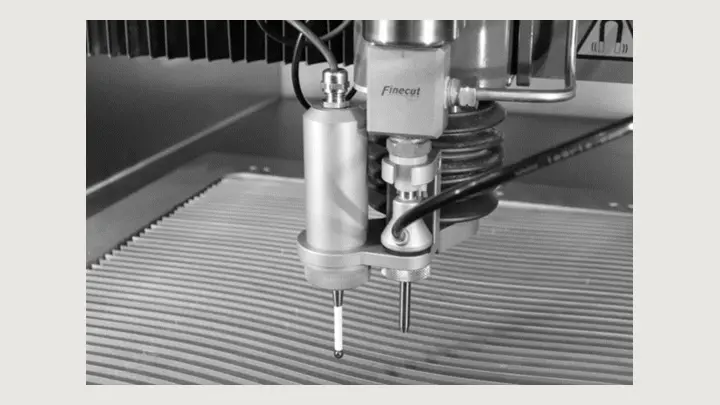

Finepart touch probe with software module
Renishaw tactile probing for setup, alignment and in-machine measurement workflows.
Reference
6003200

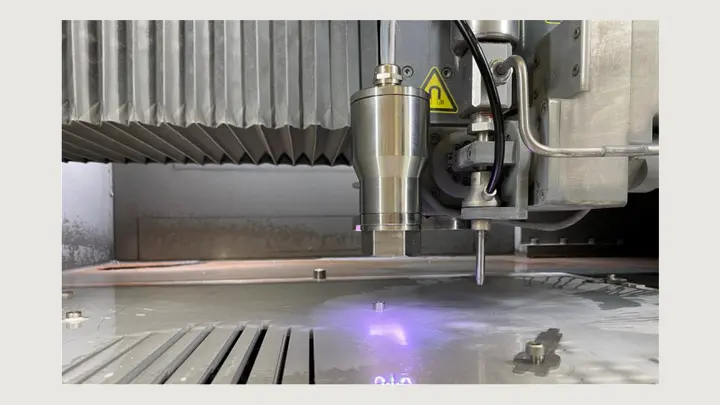

Finecam video measuring system
Optical on-machine measurement for alignment, feature inspection and process support.
Reference
6003300

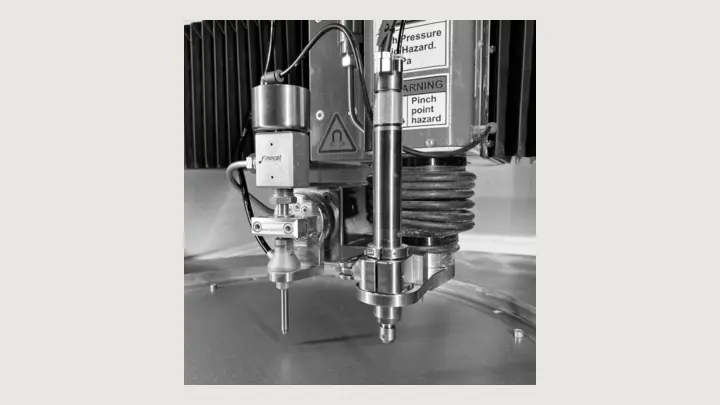

High-frequency spindle unit
A 200 W secondary spindle for suitable complementary machining operations in the Finecut workspace.
Reference
6000100

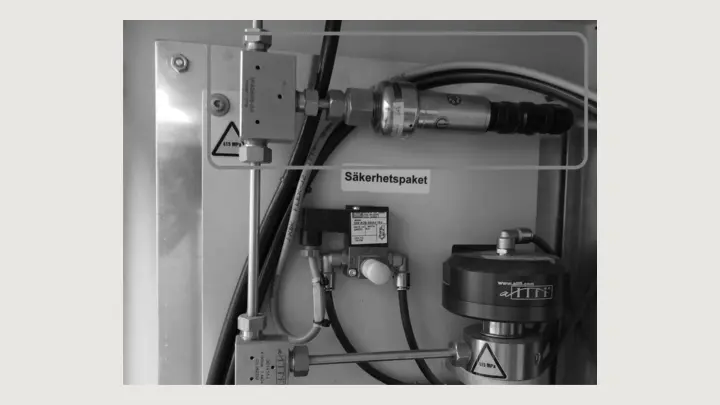

Pressure sensor in machine
Makes cutting pressure available as process information at the machine.
Reference
6002800

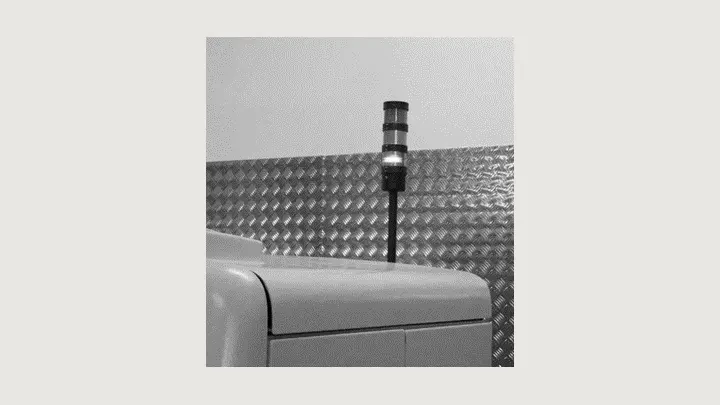

Exterior signal tower
Provides visible machine-state indication for production environments.
Reference
6002900

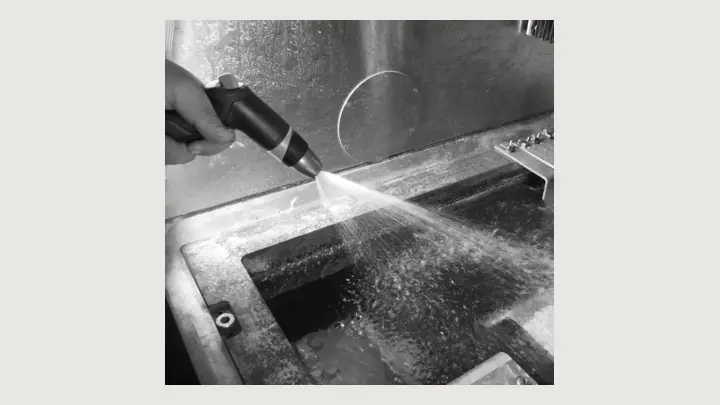

Wash gun - recirculated water
Facilitates cleaning of the machine table, fixtures and cut parts using recirculated water.
Reference
6002000

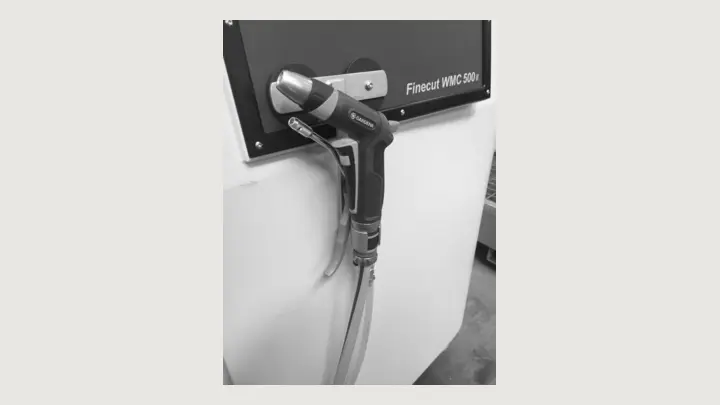

Wash gun - tap water
Facilitates cleaning of the machine table, fixtures and cut parts using facility water.
Reference
6002050

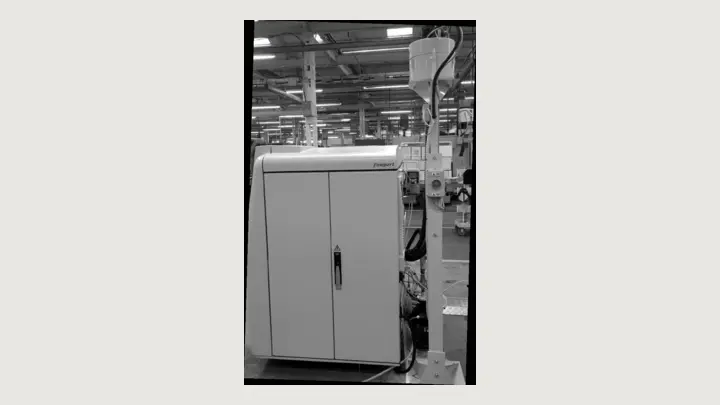

Mist extraction
Controls process mist to support visibility, abrasive-feed stability and the working environment.
Reference
6002100

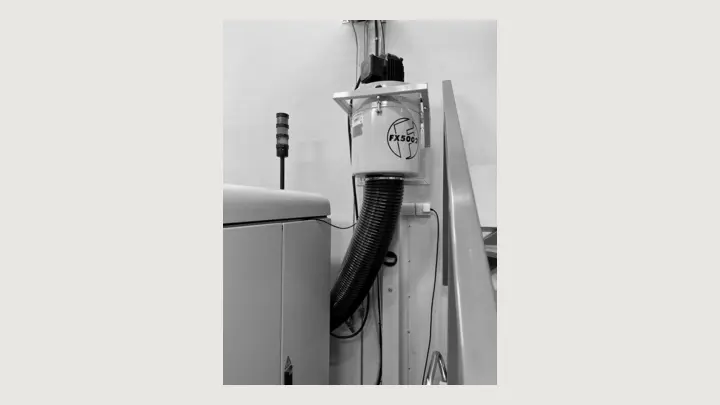

High-capacity mist extraction
Higher-capacity mist control for demanding production duty.
Reference
6002150

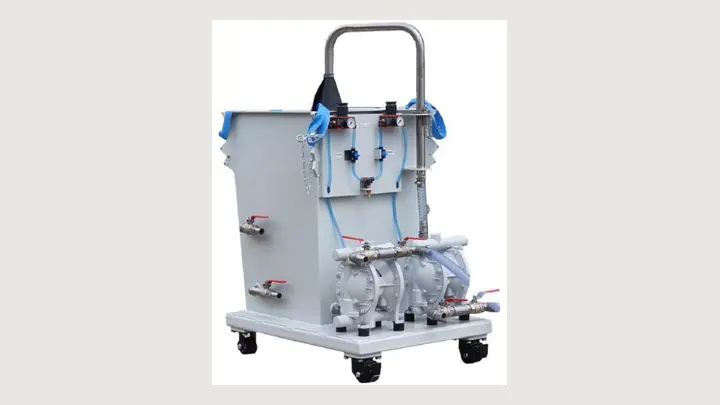

MBM MicroCut abrasive removal system
Automated removal configured for fine abrasive and MicroCut process requirements.
Reference
6002650

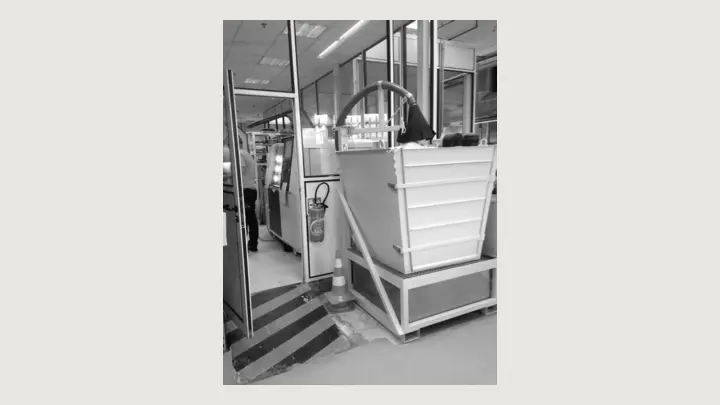

High-capacity abrasive removal system
Automated high-capacity removal for demanding production.
Reference
6002600

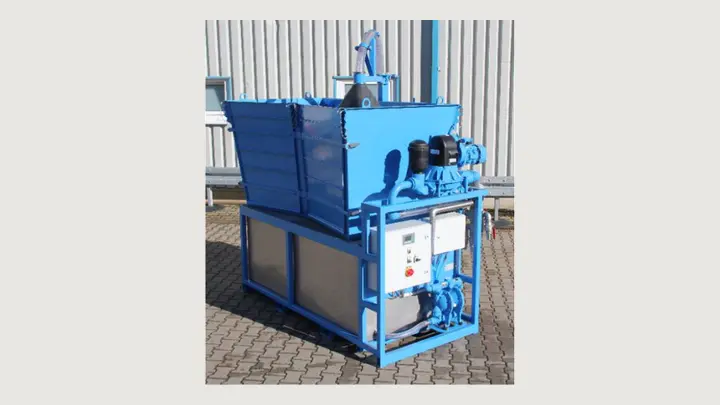

MBM multi-machine abrasive removal
Centralized abrasive handling designed to support several machines.
Reference
6002610

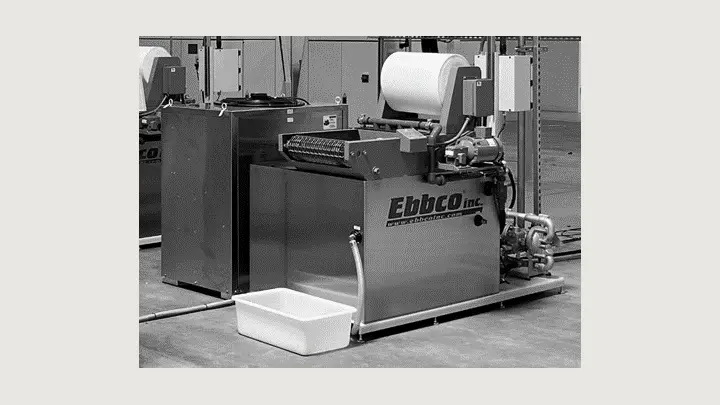

EBBCO abrasive removal system - US
High-capacity automated abrasive extraction with cooling for US installations.
Reference
6002750

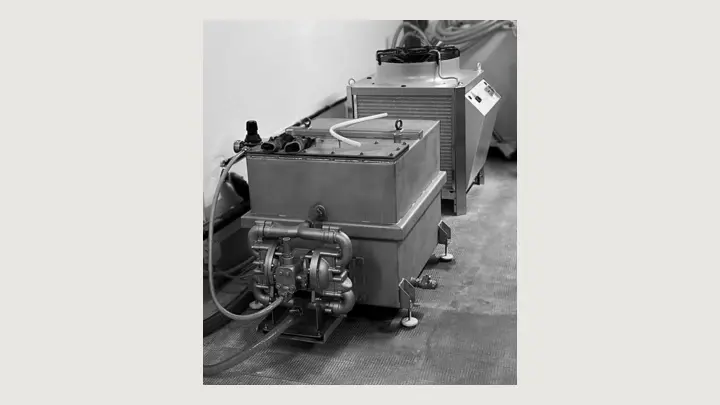

External chiller
Stabilizes catcher-water temperature where an external cooling circuit is preferred.
Reference
6005200

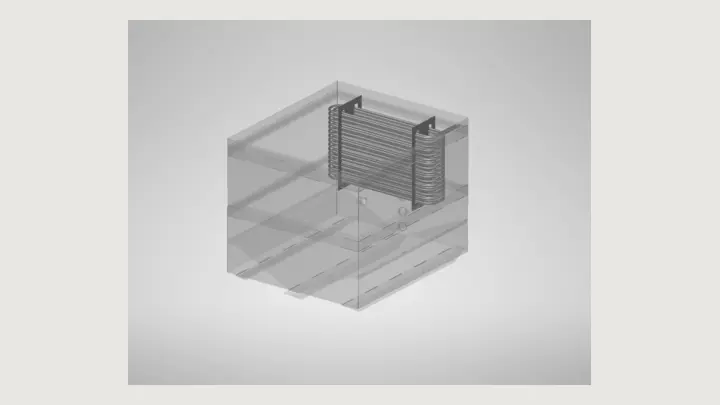

Integrated chiller
Integrated cooling for stable catcher-water temperature and process conditions.
Reference
6005300

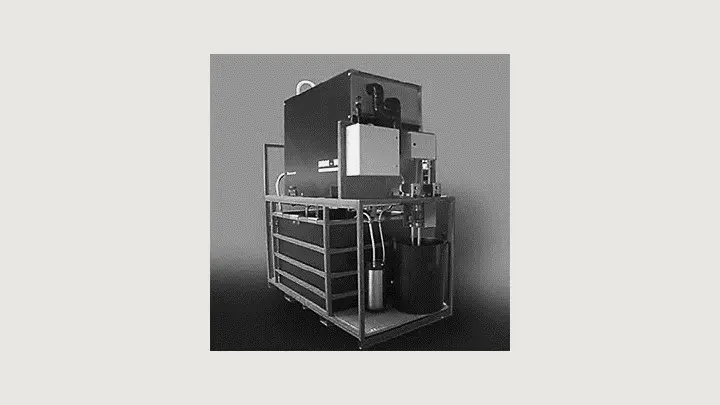

MBM water recirculation unit - CE
Closed-loop water treatment for installations requiring isolated recirculation.
Reference
6002620

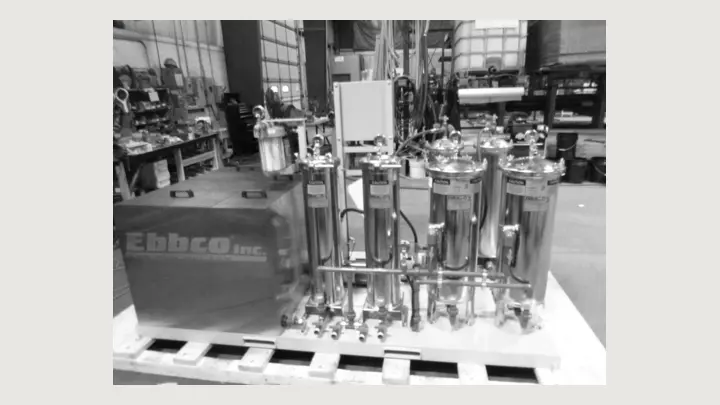

EBBCO water recirculation system - US
Closed-loop water recirculation configured for US installations.
Reference
6002790

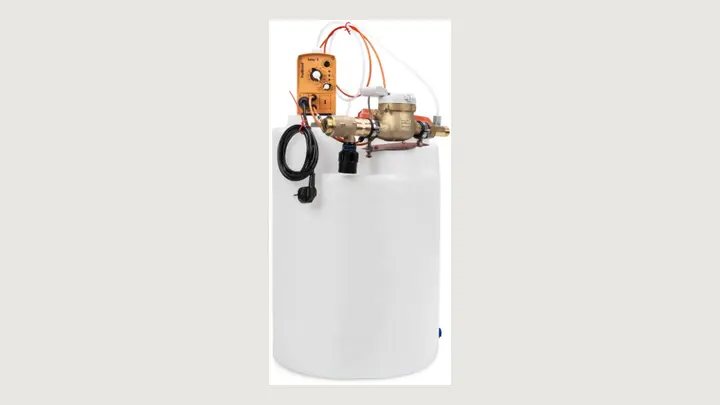

EKOWA dulco60 water treatment
Stabilizes minerals and supports the water quality required by the high-pressure process.
Reference
6003500

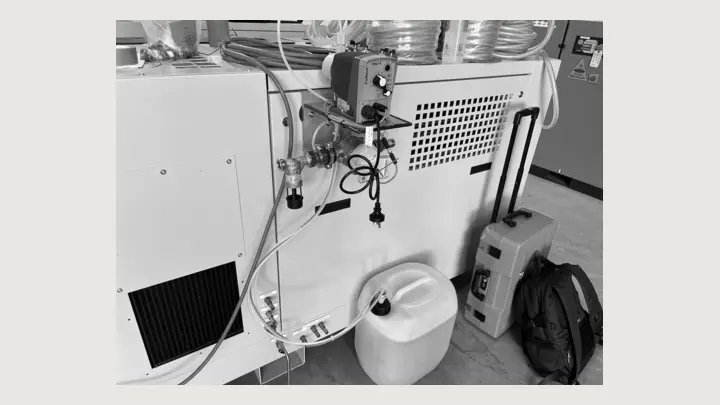

EKOWA Compact water treatment
Compact mineral-stabilization system for installations with limited footprint.
Reference
6003510

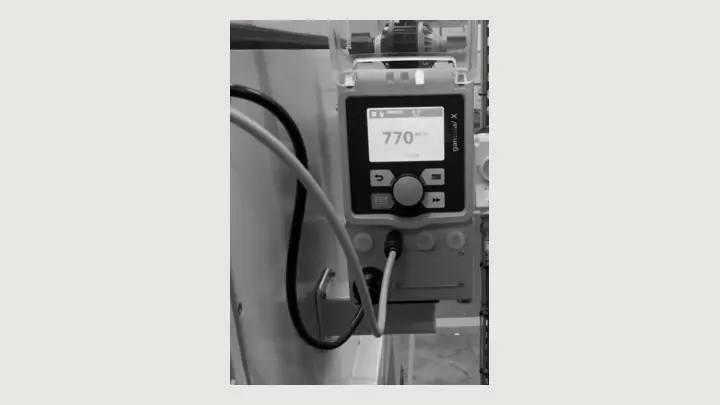

Rust inhibitor dosing system
Meters corrosion inhibitor for water-contact applications and sensitive fixture arrangements.
Reference
6003600

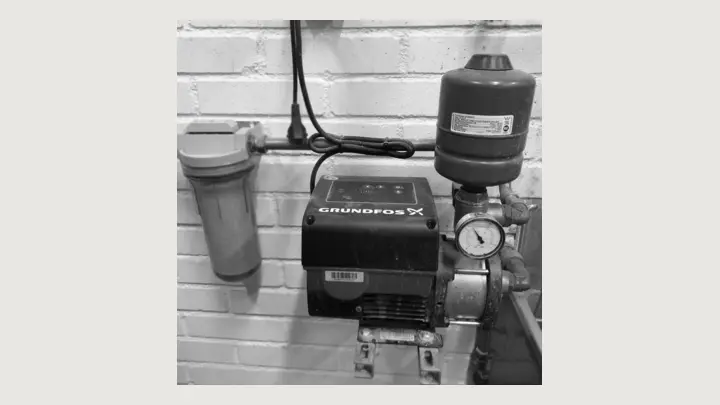

Booster pump
Secures water supply where facility pressure or flow does not meet pump requirements.
Reference
6003550 US / 6003575 EU
MT-LINKi - up to 20 machines
Production monitoring for machine utilization, alarms and operational results.
Reference
6007000

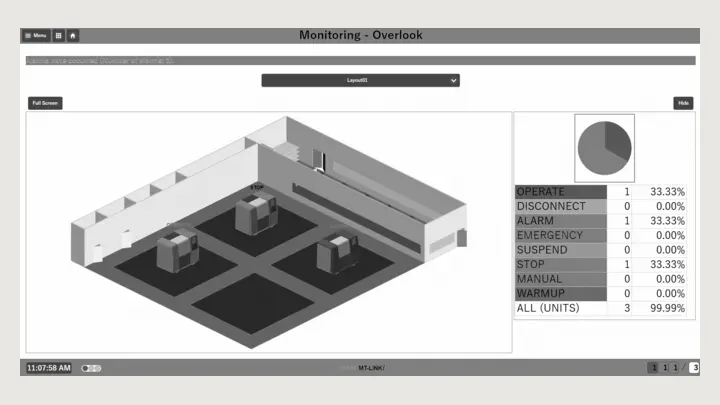

MT-LINKi pump module
Extends MT-LINKi monitoring to the high-pressure pump.
Reference
6007001
Back door for robot access
Motorized rear access prepared for robot-assisted loading and unloading.
Reference
6007100

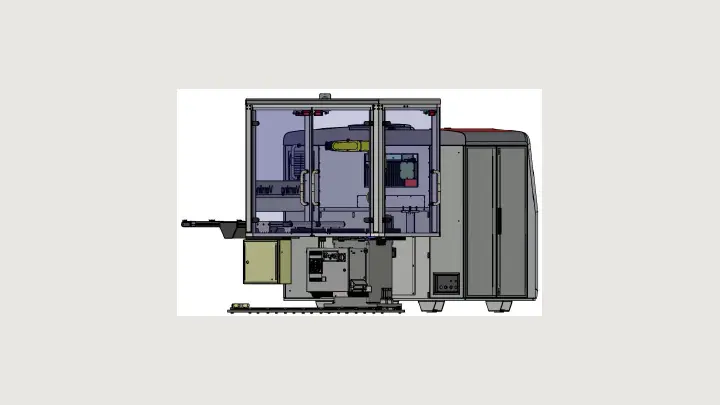

Automation and robot assistance
Custom integration of robot handling, communication and guarding around the Finecut process.
Reference
Application-specific

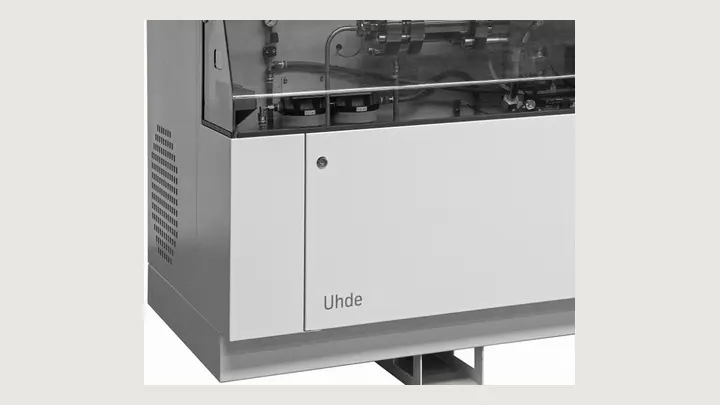

Uhde high-pressure pump
German 4,000 bar pump platform with air-cooled configuration and Finecut integration.
Reference
8005703

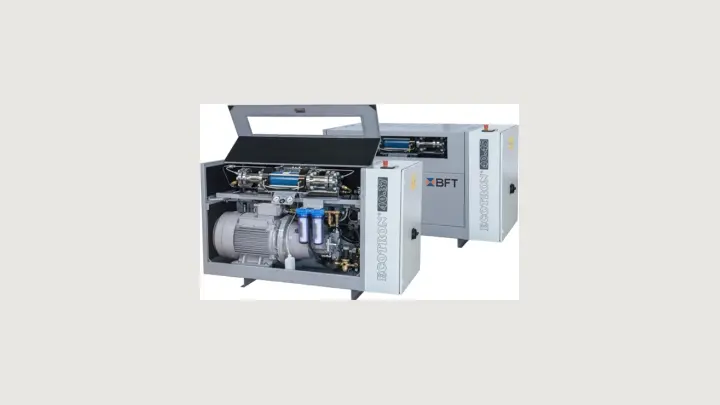

BFT high-pressure pump
Austrian 4,000 bar pump platform with service-friendly architecture and Finecut integration.
Reference
8005800

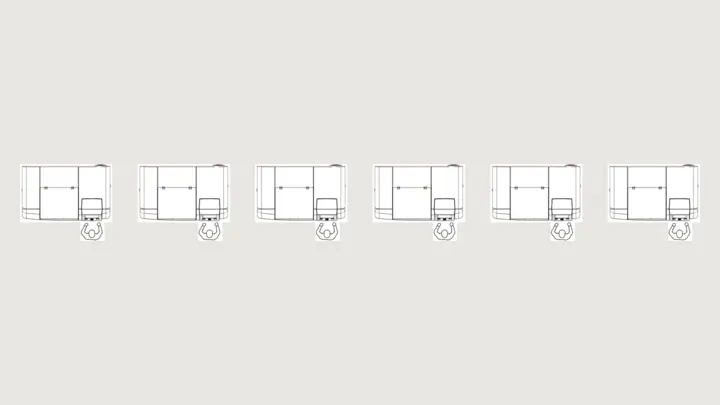

Multi-machine setup
Shared infrastructure planned around several Finecut machines, pumps and water-treatment systems.
Reference
Application-specific

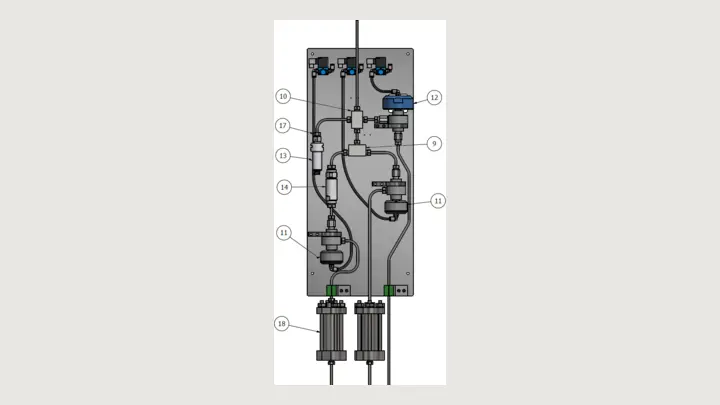

Low-pressure piercing utility
Supports coordinated low-pressure piercing needs in multi-machine installations.
Reference
6007200
CAD/CAM standard license
Application-matched CAD/CAM licensing for programming and abrasive-waterjet production.
Reference
Configured license
IGEMS floating license
Allows several users to access software while controlling simultaneous use by license count.
Reference
6008019
IGEMS service program / cloud license
Provides continuous updates and support through a service program or cloud version.
Reference
6008050

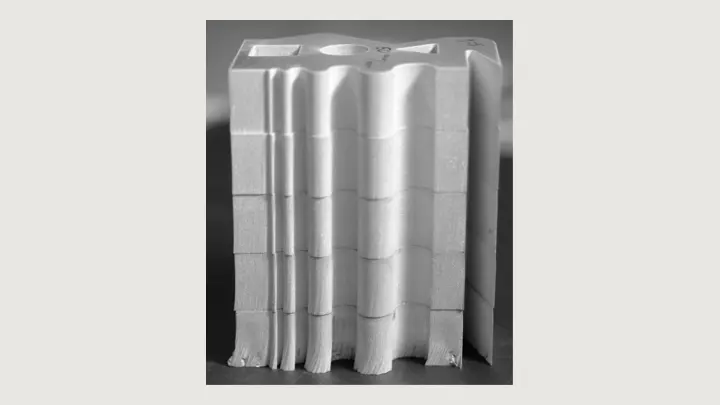

Standard CAD/CAM & AWJ optimization package
IGEMS CAD/CAM with material data and cutting-speed optimization for abrasive waterjet.
Reference
8041000
IGEMS 5-axis CAM
Imports 3D files and applies TCP toolpaths for 2D and 3D five-axis cutting.
Reference
6008015
CAM Tools
Repairs, simplifies and optimizes damaged or inefficient drawing geometry.
Reference
6008010

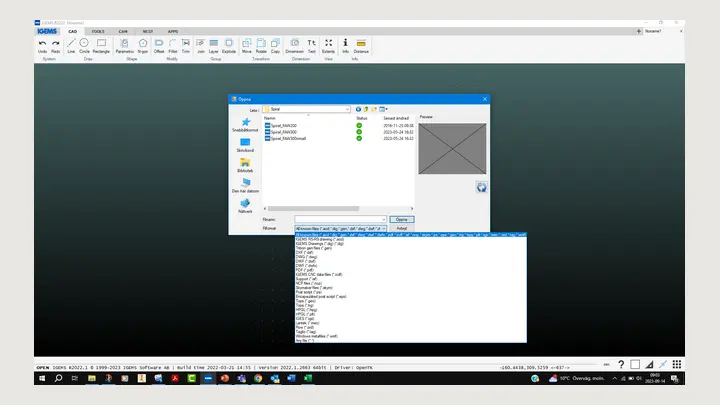

Data Exchange
Adds import support for a wider range of production and geometry file formats.
Reference
6008011
Nesting Level 1
Semi-automatic nesting strategies for efficient sheet use.
Reference
6008012
Nesting Level 2
Fully automatic nesting for many different parts on predefined areas; requires Level 1.
Reference
6008013

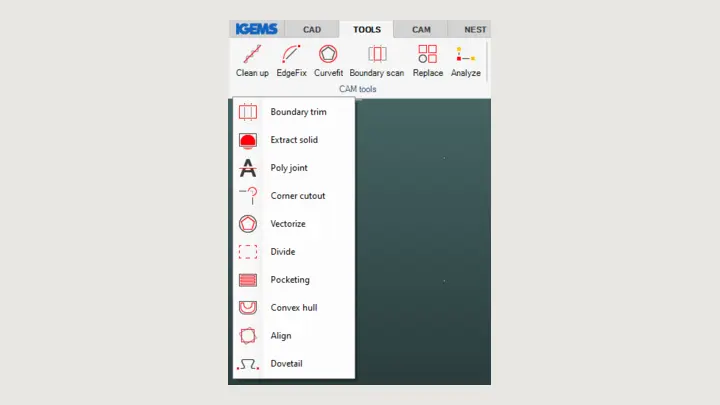

Sign Maker
Converts suitable fonts and images into CAD vectors and usable geometry.
Reference
6008014

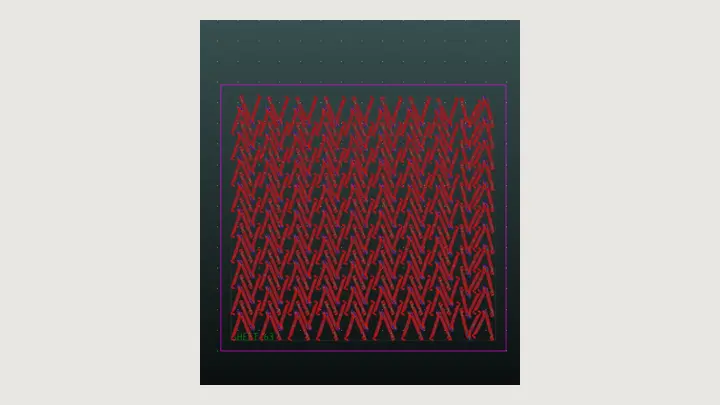

TileMaker
Specialized cutting and nesting tools for tiles, stone inlays and related work.
Reference
6008016
Organizer
SQL-based part and document organization inside the IGEMS workflow.
Reference
6008017

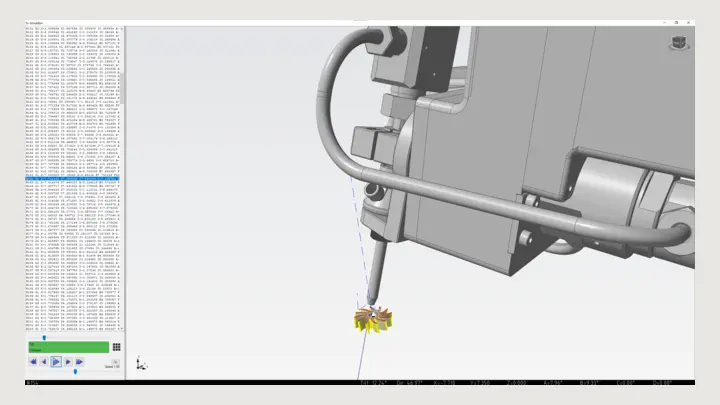

Rotating Axis / TubeCut
Programs custom tubes and rotational parts with 3D visualization.
Reference
6008018
No options match your current search and filter.
Technical scope and references are based on Finepart Options v2026.04.15. Finepart continuously develops the platform; availability and final specification are confirmed in each quotation.
A platform that evolves
Specify once.
Revisit when needed.
-
01
Define the application
Material, geometry, tolerance, volume and production environment establish the starting configuration.
-
02
Select the capability
Finepart combines the relevant motion, cutting, workholding, measurement and support options.
-
03
Confirm the retrofit path
For an installed machine, Finepart reviews serial number, controller, current equipment and local requirements before quotation.
Configure with confidence
Your application.
The right options.
Share the part, material and production target. Finepart will recommend a coherent starting package or a retrofit plan for your installed system.
